CUBEcamp 7-Zone Sleep System for Campers – Ultra-Slim and Modular

Q: What size set do I need?

Use the mattress size as a guide: The 44-piece set is designed for 70–80 × 200 cm , and the 60-piece set for 90–100 × 200 cm . If you want to widen the bed, even out the surface, or add more later, you can use the 20 × 200 cm add-on set . With our “ ” configurator at , you can also determine the exact number of elements and sets you need by entering your bed’s shape and dimensions.

Q: How many springs of different hardness levels are included in the sets?

The 44-piece set includes the following parts: 16 x dark gray hard disc springs 12 x light gray soft disc springs 16 x blue medium-hard disc springs 44 x CUBEcamp crossbar/base plate The 60-piece set includes the following parts: 25 x dark gray hard disc springs 15 x light gray soft disc springs 20 x blue medium-hard disc springs 60 x CUBEcamp cross brace/base plate The add-on set includes the following parts: 5 x dark gray hard disc springs 3 x light gray soft disc springs 4 x blue medium-hard disc springs 12 x CUBEcamp crossbar/base plate

Q: How do I set the 7 zones?

Start with our tried-and-true standard configuration: 2 rows of soft springs in the shoulder area , 1 row of firm springs in the lumbar region , and 3 rows of medium springs in the pelvic area . You can then adjust the settings based on your sleeping position, body type, and mattress by customizing the firmness levels zone by zone.

Sleep on the road like you do at home – enjoy responsive 7-zone sleeping comfort in your motorhome, caravan or rooftop tent. CUBEcamp gives you the perfect support in every sleeping position. The adaptable sleep system requires just 3.3 cm of installation height and uses an impressive 95% of it as active suspension travel. Thanks to the unique 3-axis flexibility of the base plates, it adapts seamlessly to every slope or curve in your vehicle – with no DIY workarounds or additional custom parts, on almost any surface.

€44,90

Tax included. Shipping calculated at checkout

Dimensions: 20 x 200cm - Erweiterungsset 12

Quantity:

In stock

Free delivery and returns + 30-day sleep trial

Not sure how many elements you need for your bed? Use our configurator to find the right sets.

To our configurator

CUBEcamp 7-Zone Sleep System for Campers – Ultra-Slim and Modular

€44,90

MORE ABOUT THE CUBECAMP SLEEPING SYSTEM

Product properties

Extremely low overall height (3.3 cm)
Up to 95% spring travel utilization
Flexible high-tech spring, optimized for maximum spring travel
Easy installation without tools
Variable installation options
Individual zone adjustment possible
Made in Germany

Dimensions and weight

Grundfläche	Gewicht	Bauhöhe
Set 44: 70/80 x 200 cm	3 kg	3,3 cm
Set 60: 90/100 x 200 cm	4,1 kg	3,3 cm
Ergänzungsset 12: 20 x 200 cm	0,8 kg	3,3 cm

Product safety

Manufacturer information:

Cube Sleep GmbH, Ludwig-Ganghofer-Str. 20, DE 84494 Neumarkt-Sankt Veit,

Email: service@cubecamp.de

Responsible person for the EU:

CUBEcamp

Cube Sleep GmbH, Ludwig-Ganghofer-Str. 20,

Phone: +49 8639 6099997

Email: service@cubecamp.de

Extremely low overall height (3.3 cm)
Up to 95% spring travel utilization
Flexible high-tech spring, optimized for maximum spring travel
Easy installation without tools
Variable installation options
Individual zone adjustment possible
Made in Germany

30-Day Trial Period

Take your time to thoroughly test CUBEcamp for 30 days.

Free Shipping

You won't pay any shipping costs for your order within Germany

Free Returns

Not satisfied? Then you can return your item to us free of charge.

THE ADVANTAGES OF CUBECAMP

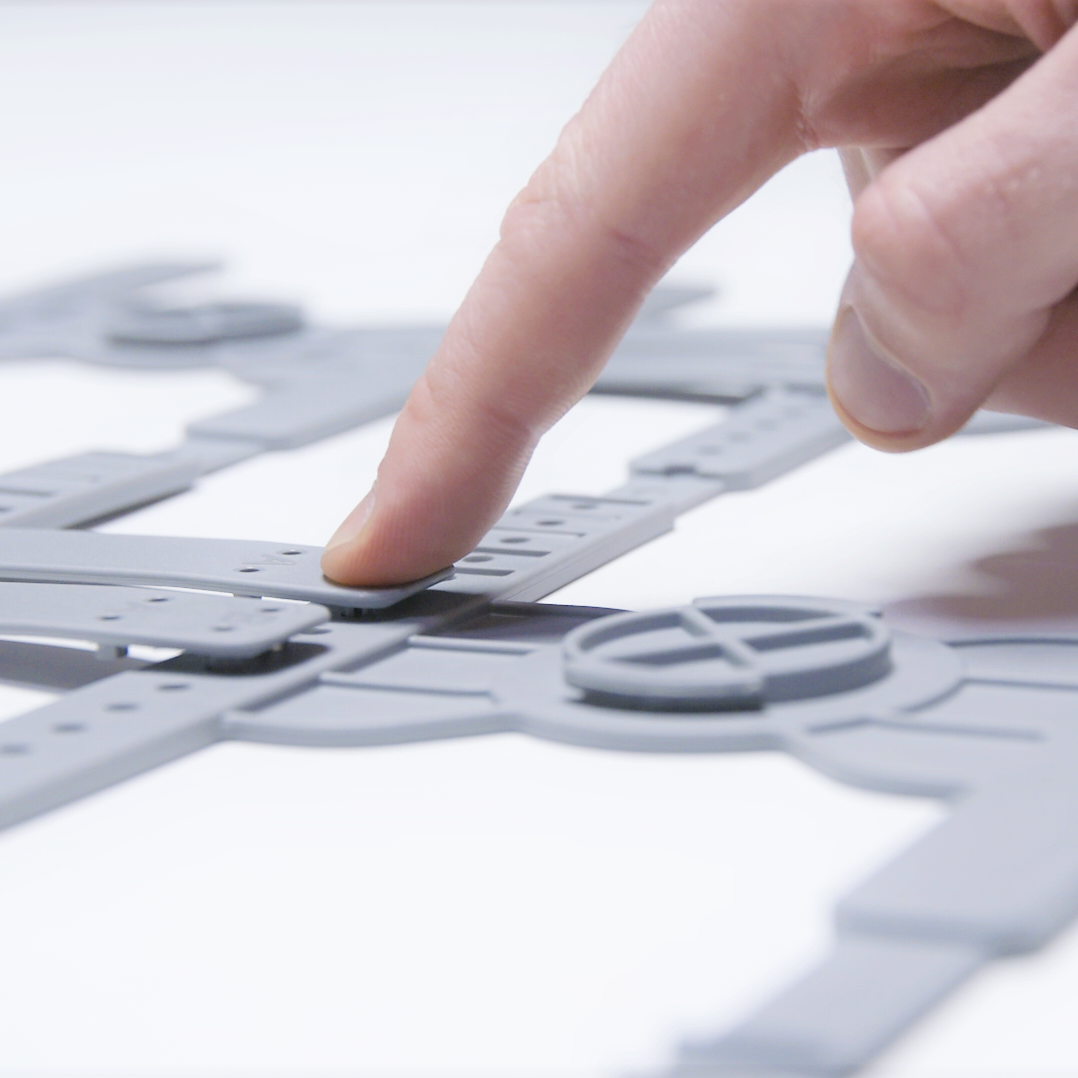

CUBEcamp Steckstystem Bodenplatten-Elemente, einfach per Fingerdruck zusammenzuklicken

Maximum versatility without compromise

Beds in recreational vehicles often deviate from standard dimensions. Curves, slants, or recesses make it difficult to retrofit a comfortable base frame. CUBEcamp uses specially developed, highly versatile floor panels that can be adjusted and connected along three axes. This design allows you to vary the spacing between the panels. This way, you can replicate even complex floor plans with near-millimeter precision without having to rely on half-panels or custom sizes. The system efficiently fills the entire sleeping area.

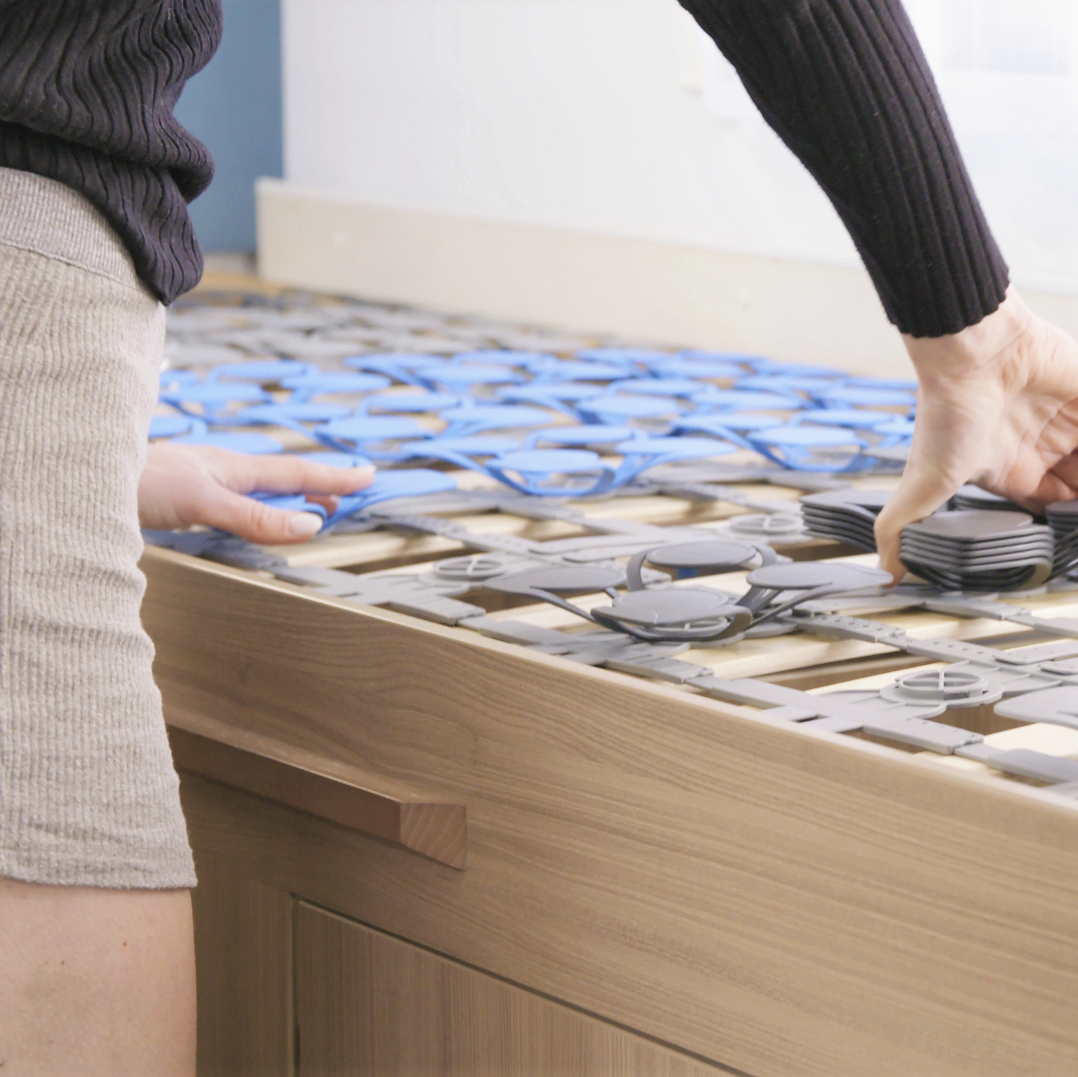

Frau steckt CUBEcamp Tellerfedern auf Bodenplatten-Elemente direkt im mobilen Zuhause

Maximum spring performance in a minimal space

Space is a critical factor, especially in roof tents or alcoves. CUBEcamp has a height of just 3.3 cm, yet it utilizes nearly all of that space for active spring travel. The disc springs, made of thermoplastic elastomers (TPE), provide point-elastic support with four independently flexible wings. CUBEcamp is the only system that includes three different firmness levels in the standard set. You can position the disc springs and secure them with a sturdy bayonet lock to create a custom 7-zone configuration that supports your spine in any sleeping position.

Schlafende Frau unterwegs im mobilen Zuhause

PlusX Award Winner: Lightweight, Ergonomic, and Mildew-Free

CUBEcamp stands for award-winning quality, as evidenced by its PlusX Award for quality, ergonomics, and functionality. Weighing only about 3 kg per set (for 70/80x200 cm) , it is ideal for weight-sensitive RVs and rooftop tents . A key added benefit is the optimal ventilation beneath the mattress: Thanks to its open design, air can circulate freely, wicking away moisture and reliably preventing mildew stains and mold growth.

Technical Specifications

Total height

3.3 cm

Use of Suspension Travel

about 95%

Spring Material

TPE (thermoplastic elastomer)

Temperature range

Permanently elastic at temperatures ranging from −10°C to +60°C

Load capacity

Tested up to 140 kg

Frequently asked questions

Can I connect two sets continuously?

Yes, that's no problem at all. Our CUBEcamp set can be assembled consecutively so that both sets create a large area.

Can I also place the CUBEcamp system on an existing slatted frame?

Yes, that's no problem at all. You can also place the CUBEcamp system directly on your existing slatted frame.

Is a special substructure required?

No, the base plate grid of the CUBEcamp system can be placed on all bases and surfaces on which a normal mattress can be placed.

What size set do I need?

Use the mattress size as a guide: The44-piece setis designed for70–80 × 200 cm, and the60-piece set for90–100 × 200 cm. If you want to widen the bed, even out the surface, or add more later, you can use the20 × 200 cm add-on set. With our “ ” configurator at, you can also determine the exact number of elements and sets you need by entering your bed’s shape and dimensions.

How many springs of different hardness levels are included in the sets?

The 44-piece set includes the following parts:

16 x dark gray hard disc springs
12 x light gray soft disc springs
16 x blue medium-hard disc springs
44 x CUBEcamp crossbar/base plate

The 60-piece set includes the following parts:

25 x dark gray hard disc springs
15 x light gray soft disc springs
20 x blue medium-hard disc springs
60 x CUBEcamp cross brace/base plate

The add-on set includes the following parts:

5 x dark gray hard disc springs
3 x light gray soft disc springs
4 x blue medium-hard disc springs
12 x CUBEcamp crossbar/base plate

How do I set the 7 zones?

Start with our tried-and-true standard configuration: 2 rows of soft springs in the shoulder area,1 row of firm springs in the lumbar region, and 3 rows of medium springs in the pelvic area. You can then adjust the settings based on your sleeping position, body type, and mattress by customizing the firmness levels zone by zone.

Can I change the hardness later?

Yes. That's exactly what CUBEcamp is designed for. You remove the springs, reinsert them in a different spot, and secure them with a bayonet lock. That way, you can readjust them at any time—without tools.

What mattress height do you recommend?

Ideally, you should always choose a mattress that is as high as is structurally possible. Of course, there are differences here depending on the intended use: in a roof tent, there will always be slightly less height available for a mattress than in a caravan or camper.

Does this really help with moisture under the mattress?

CUBEcamp promotes air circulation under the mattress and can help reduce moisture buildup. The extent of this effect also depends on the mattress, ventilation, and usage—but a better-ventilated underside is generally a plus when camping.
